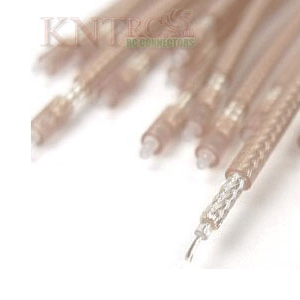

        RG178 Coaxial Cable
Brand: KNT
MOQ: 50m
Weight(Kg): 0.100
Quantity:


You have 0 itmes in your order.
Sub Total: $0 USD



Details

Conductor: Diameter 0.31mm, 30AWG, 7/1.02, Silver-Coated Copper Clad Steel
Dielectric: Diameter: 0.86mm, FEP
Outer conductor: 16/3/0.092, Coverage 92.7 %, Silver-Coated Copper
Jacket: Diameter: 1.8mm, FEP, Color: Brown
Nom. Impedance: 50 Ohms
Nom. Capacitance: 95.8 pF/m
VSWR (0 – 6 GHZ): Max 1.3
Dielectric strength
AC 1.0 KV for 1 minute

,,,
